Brand Name : SFT
Model Number : F74ZZ
Place of Origin : China
MOQ : negotiable
Price : negotiable
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 50000PCS/MONTH
Delivery Time : 20-45DAYS
Packaging Details : carton,pallet
Bearing Material : Bearing Steel\Gcr15
Seals Type : ZZ/metal shields
Specification : 4x7/8.2x2.5mm
tructure : Deep Groove
Precision Rating : P0,P6
Wheel material : Plastic,aluminum
F74ZZ flange deep groove ball bearing
Product Detail
Deep groove ball bearing with Flange
Miniature deep groove ball bearings refer to metric series with an outer diameter of less than 9mm; inch series, all kinds of bearings with an outer diameter of less than 9.525mm! The main materials are carbon steel, bearing steel, stainless steel, plastics, ceramics, etc. The smallest inner diameter can be 0.6mm, and the general inner diameter is 1mm. Product Features Among the miniature bearings with ultra-small aperture, the types of miniature deep groove ball bearings include metric 68 series, 69 series, 60 series, etc. There are 6 types of inch R series. On this basis, they can also be divided into ZZ steel plates. Dust cover bearing series, miniature bearing series with RS rubber seal ring, Teflon bearing seal ring series and flange flange series, etc. The main purpose is suitable for all kinds of industrial equipment, small rotary motors and other high-speed and low-noise fields, such as: office equipment, micro motors, instrumentation, laser engraving, small clocks, soft drives, pressure rotors, dental drills, hard disk motors , Stepper motors, video recorder drums, toy models, computer cooling fans, currency counters, fax machines and other related fields.
Related Products
Bearing | Bore | Outer | Flange side | Width | Chamfer | Dynamic | Static | Limite | Weight | ||
Open | Close | Open | Close | ||||||||
MF52 | 2 | 5 | 6.2 | 2 | 2.5 | 0.1 | 169 | 50 | 94000 | 0.25 | |
MF62 | 6 | 7.2 | 2.5 | 2.5 | 0.15 | 333 | 100 | 83000 | 0.45 | ||
MF72 | 7 | 8.2 | 2.5 | 3 | 0.15 | 382 | 135 | 73000 | 0.6 | ||
MF63 | 3 | 6 | 7.2 | 2 | 2.5 | 0.1 | 209 | 74 | 71000 | 0.34 | |
MF83 | 8 | 9.2 | 2.5 | 3 | 0.15 | 395 | 141 | 60000 | 0.59 | ||
MF93 | 9 | 10.2 | 10.6 | 2.5 | 4 | 0.2 | 571 | 189 | 56000 | 1.3 | |
MF74 | 4 | 7 | 8.2 | 2 | 2.5 | 0.1 | 255 | 108 | 60000 | 0.4 | |
MF84 | 8 | 9.2 | 2 | 3 | 0.2 | 395 | 141 | 56000 | 0.64 | ||
MF104 | 10 | 11.2 | 11.6 | 3 | 4 | 0.2 | 711 | 272 | 48000 | 1.5 | |
MF85 | 5 | 8 | 9.2 | 2 | 2.5 | 0.1 | 218 | 90 | 53000 | 0.42 | |
MF95 | 9 | 10.2 | 2.5 | 3 | 0.15 | 431 | 169 | 50000 | 0.66 | ||
MF105 | 10 | 11.2 | 11.6 | 3 | 4 | 0.15 | 431 | 169 | 50000 | 1.38 | |
MF115 | 11 | 12.6 | 3 | 4 | 0.15 | 716 | 282 | 45000 | 0.81 | ||
MF106 | 6 | 10 | 11.2 | 2.5 | 3 | 0.15 | 496 | 218 | 45000 | 0.79 | |
MF126 | 12 | 13.2 | 13.6 | 3 | 4 | 0.2 | 716 | 295 | 43000 | 1.86 | |
MF117 | 7 | 11 | 12.2 | 2.5 | 3 | 0.15 | 455 | 202 | 43000 | 0.81 | |
MF137 | 13 | 14.2 | 14.6 | 3 | 4 | 0.2 | 541 | 276 | 40000 | 2.17 | |
MF128 | 8 | 12 | 13.2 | 13.6 | 2.5 | 3.5 | 0.15 | 543 | 274 | 40000 | 1.14 |
MF148 | 14 | 15.6 | 3.5 | 4 | 0.2 | 817 | 386 | 38000 | 2.42 |
Feature of flange deep groove ball bearing
1. chrome steel for inner ring and outer ring
2. SPCC cage/Nylon cage
3. chrome steel balls
4. Dry lube/ Grease/ Oil
5. Rubber seals/ ZZ metal shields
6. High speed
7. Long spin time
8. Low friction
9. Rustproof and corrosion resistance
10. Durable
11. Easy to maintenance
![]() |

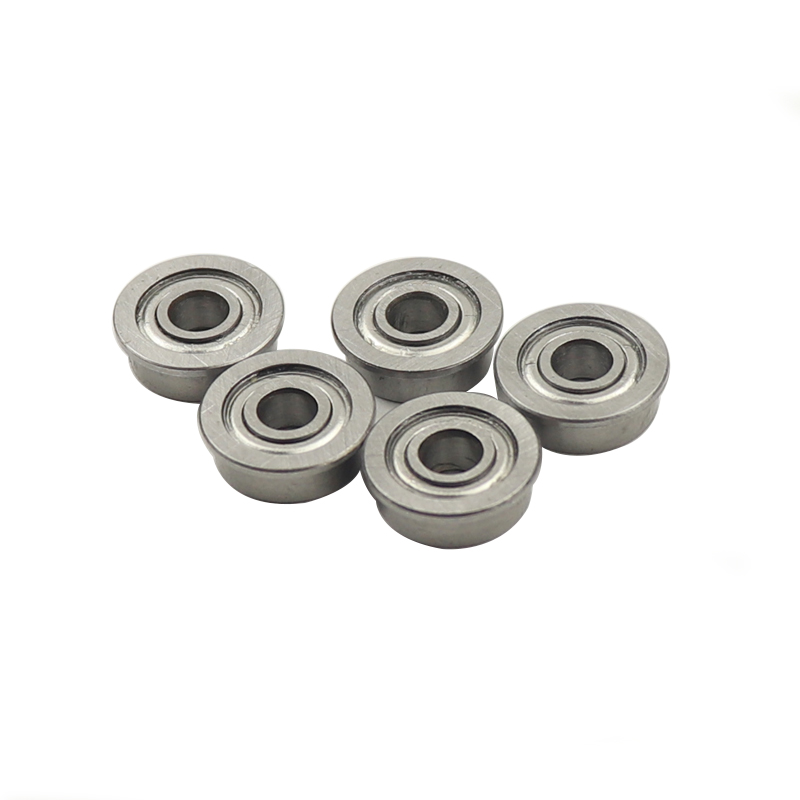

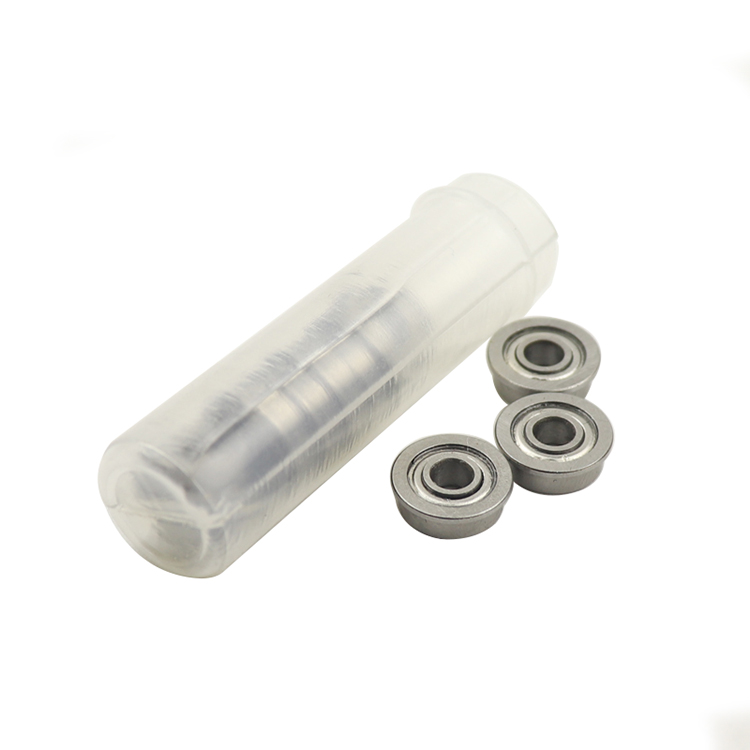

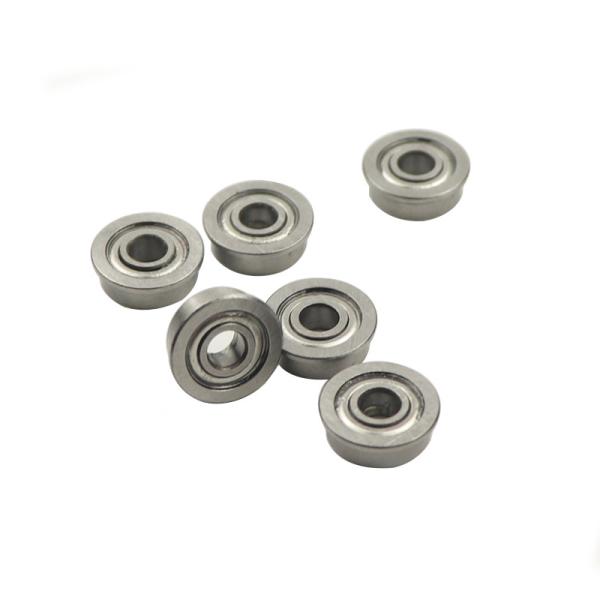

Chrome Steel Flange Deep Groove Ball Bearing 4x7x8.2x2.5mm F74ZZ Images |
