Cam Clutch Sprag Freewheel Clutch Bearing One Way
Feature of Sprag Freewheel Clutch Bearing One Way
Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained , sealed and bearing
supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design
with a »full sprag complement« that gives a very high torque for a given diameter. Any overload is
resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated
and use standard shaft lip seals. Type FSO-GR is grease lubricated and can be equipped with contact free
labyrinth seals. Type HPI is specially designed for high speed indexing applications.

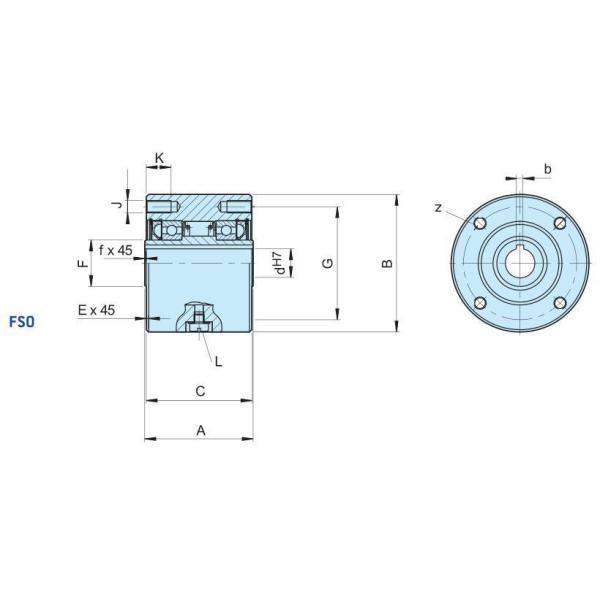

Dimensions and Capacities :
| Type | Size | | Overrunning speeds | | Lubri cant | Wei ght | Torque Drag |
| FSO FSO-GR HPI | | | FSO | FSO-GR | dH7-bxh | d4) | A | B | C | E | F | G | z | J | K | L | f | FSO | | TR |
| TKN1) | nmax2) | nmax3) | | min-max | | -0.05 | | | | | | | | | | | | |
| [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | | | m m | | [m m] | [ml] | [kg] | [Ncm] |
| 300 | 379 | 3000 /900 | 3600 /900 | 15-5x5 | 12... 19 | 63.5 | 76.2 | 60.45 | 1.6 | 28. 58 | 66. 67 | 4 | M8 | 13 | M6 | 0.8 | 7 | 1.6 | 18 |
| 400 | 407 | 2800 /850 | 3600 /850 | 18-6x6 | 12... 22 | 69.85 | 88.9 | 68.07 | 1.6 | 30 | 73 | 4 | M8 | 13 | M6 | 0.8 | 10 | 2.7 | 27 |
| 500 | 1621 | 2500 /800 | 3000 /800 | 30-8x7 | 19... 33 | 88.9 | 107. 95 | 85.73 | 1.6 | 45 | 92 | 4 | M8 | 16 | M6 | 1.5 | 22 | 4.8 | 31 |
| | | | | 40-12x8 | | | | | | | | | | | | | | | |
| 600 | 3105 | 2200 /750 | 2400 /750 | 45-14x9 | 24... 57 | 95.25 | 136. 525 | 92.2 | 1.6 | 63.5 | 120. 6 | 6 | M8 | 16 | M6 | 1.6 | 52 | 8.6 | 62 |
| | | | | 50-14x6 | | | | | | | | | | | | | | | |
| | | | | 50-14x9 | | | | | | | | | | | | | | | |
| 700 | 6900 | 1600 /450 | 2000 /450 | 60-18x11 | 48... 82 | 127 | 180. 975 | 123.85 | 1.6 | 90 | 158. 75 | 8* | M10 * | 20 | M6 | 1.6 | 168 | 19 | 156 |
| | | | | 65-18x11 | | | | | | | | | | | | | | | |
| | | | | 70-20x12 | | | | | | 101. 65 | | | | | | | | | |
Application of Sprag Freewheel Clutch Bearing One Way
By matching with reducer, it is widely used on Transport machinery, Elevator, Metallurgy Machinery, Mining Machinery, Cement Machinery, Power Station Machinery and so on.
Product Tags:
|
|
FSO600 HPI 600 FSO 600 Cam Clutch Sprag Freewheel Clutch Bearing One Way Images
|
